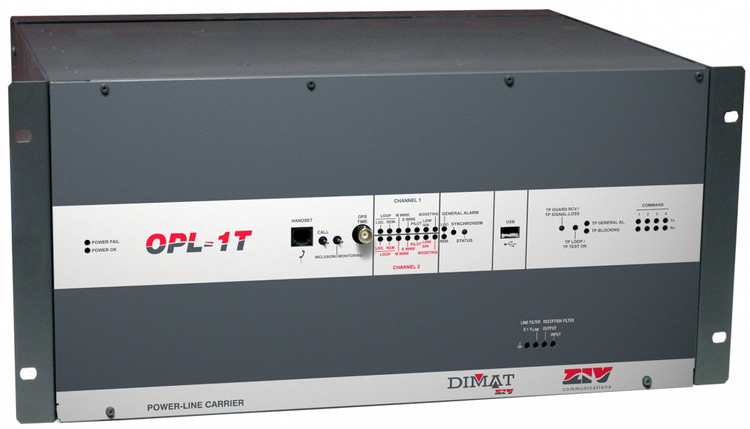

Analogue Power Line Carrier Terminal with Built-in Teleprotection

دانلود کاتالوگ: http://mixin-statics.hs3.ir/shop-resources/bjxPWtk3q2/pages/2024/10/26/ziv_opl-1t_english_rev_13.pdf

• A small-size device that provides different services by installing the appropriate modules into the unit. The fully modular architecture of the OPL-1T also offers an optional built-in analog teleprotection system.

  Key features

• Complies with IEC 60495 and IEC TS 61000-6-5 standards.
• Complies with IEC 60834-1 standard (built-in TP model).
• Frequency range of 40 kHz to 500 kHz.
• 1 or 2 standard 4 kHz channels in each direction plus a large variety of analog built-in options (speech, FSK modem, baseband input/output circuit, transit filter and built-in teleprotection).
• 20, 40 or 80 W PEP.
• Compact 19″/5 s.u. chassis for 20 W and 40 W.
• Additional 19″/5 s.u. chassis for 80 W.
• Local management system based on a Web interface.
• Built-in terminal blocks (cabinet mounting upon request).
