Highly flexible configuration for diverse applications. Compatible with IEC 61850 ed 2 standard.

Wide range of line interfaces available for the most usual communication channels.

What’s new?

1. Complete IEC61850 Ed.2 server
2. Cybersecurity
3. A new optical line module with SFP interface
4. New 2Mbit/s and 64 Kbit/s line interface modules
5. A new Java-free WEB management system.

Key features

• Complies with IEC 60834-1 and IEC TS 61000-6-5 standards.
• Complies with ANSI IEEE C37.90.1 and ANSI IEEE C37.90.2 standards.
• Compatible with IEC 61850 Ed.2 standard.
• Capable of managing one or two analog and/or digital line interfaces.
• Capable of operating as two independent teleprotection terminals in one chassis when equipped with two line interfaces.
• Intended for blocking, direct and permissive tripping schemes, as well as for telesignaling systems.
• Capability of command transits for T (Teed-line) and ring line topologies.
• Analog line interface
  • Number of commands:Up to four
  • Interface: 4-wire / 600 ohms
  • Bandwidth: 2.5 or 4 kHz.
• Digital line interfaces
  • Number of commands: Up to eight
  • Available interfaces: E1 (G.703.6), 64 kbit/s (G.703, V.11 or V.35 or X.21), C37.94 MM of SM fiber optic (2, 60 or 120km range), Ethernet
• Possibility of transmitting remote measurements from distributed energy resources (DER) such as wind farms, solar plants, biomass plants and others.

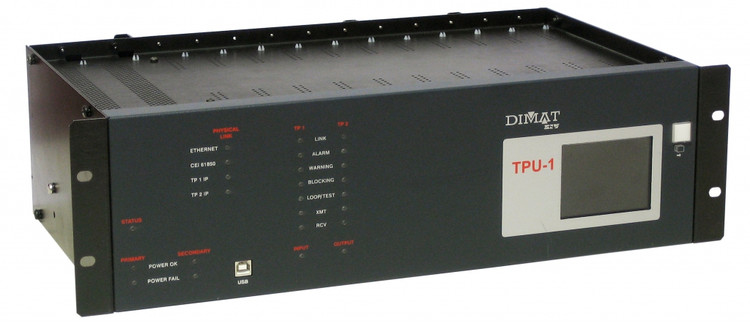

• Compact 19″/3 s.u. chassis.
• SNMP V1/V2c/V3 agent.
• Web management system with LAN connection (HTTPS).
• Redundant power supply (optional).
• LCD screen for command counters (optional).
• Built-in or cabinet-mounted terminal blocks.
